Máy tính công nghiệp không quạt UNO-1483G
Overview
Intel® Core™ i Regular-Size DIN-rail Controller w/ 4 x GbE, 3 x mPCIe, 1 x PCIe, DP, VGA, 4 x DI, 4 X DO
Features
- 4th Generation Intel® Core™ i3 Processors up to 1.7GHz with 8GB DDR3L Memory
- 4 x GbE, 4 x USB 2.0/3.0, 1 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x DP, Audio
- Compact with Fanless Design
- Supports PCIe card, PoE iDoor module and Digital I/O for Machine Motion/ Vision application
- Dual Power Input and Remote Power Button for avoiding power down time and remote power control
- 3G/GPS/GPRS/WiFi Communication by iDoor Technology
- Supports MRAM by iDoor Technology
- Hot-Swap RTC battery with easily access at top side
- Supports Fieldbus Protocol by iDoor Technology

Specifications [UNO-1483G]
Part Number |
UNO-1483G-434AE
|
General
|
|
Certifications
|
CE, FCC, UL, CCC, BSMI
|
Enclosure |
Aluminum Housing
|
Mounting |
DIN-rail, Wallmount
|
OS Support |
Microsoft® Windows 7/8, WES7,WIN10 Ent. LTSB, AdvLinux
|
Power Consumption |
41W (Typical), 60W(Max)
|
Weight (Net) |
2.4kg (5.3lbs)
|
Power Requirement |
12V/24VDC ± 20%
|
Form factor |
Regular Size
|
Dimensions ( W x D x H ) |
106 x 139 x 198 mm (4.2″ x 5.8″ x 7.8″)
|
System Hardware
|
|
Storage
|
One drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD)
|
Watchdog Timer |
Programmable 255 levels timer interval, from 1 to 255 sec
|
System Chip |
Integrated Intel 8 Series Chipset
|
Graphics Engine |
Intel® HD Graphics 4400
|
Expansion |
1 x Full-size mPCIe slot, mPCIe 2.0, 1 x Half-size mPCIe slot w/ PCIe signal, 1 x PCIex1 slot
|
Memory |
1 x Full-size mPCIe slot, mPCIe 2.0, 1 x Half-size mPCIe slot w/ PCIe signal, 1 x PCIex1 slot
|
Processor |
Intel® 4th Gen Core™ i3-4010U ULT 1.7 GHz Dual Core, 3MB L2
|
Ethernet |
LAN B/C/D: Intel® i210-IT GbE, LAN A: Intel® i218-LM GbE
|
LED Indicators |
LEDs for Power, battery, LAN (Active, Status)
|
I/O Interface
|
|
Serial Ports
|
1 x RS-232, DB9, 50~115.2kbps, 1 x RS-422/485, DB9, auto flow control, 50~115.2kbps
|
Power Connector |

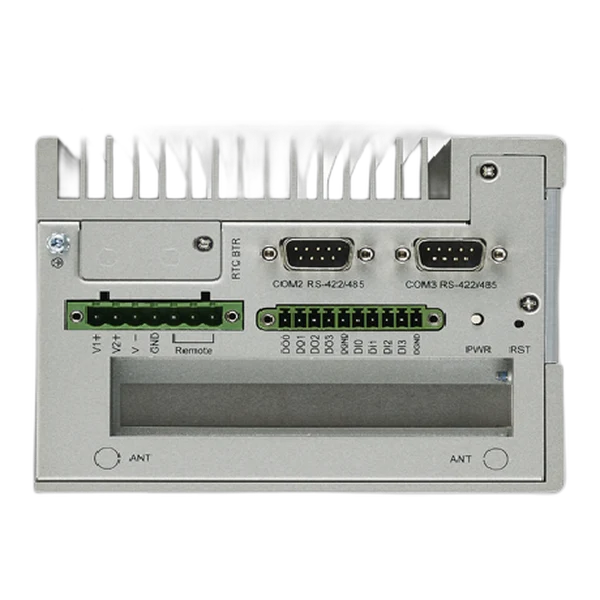

1x 7 Pins, Terminal Block to support dual power input and remote power control
|
LAN Ports |
4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
|
Isolated DI/O |
4-ch digital input,(Wet/dry contact, 4-ch digital output (2500 VDC)
|
USB Port |
4 x USB Ports (2 x USB2.0, 2 x USB3.0)
|
Displays |
1 x VGA, supports 1920 x 1080 @ 60Hz 24bpp, 1 x HDMI 1.4a, supports 1920 x 1080 @ 60Hz 24bpp
|
Audio |
Line-out
|
Environment
|
|
Shock Protection
|
Operating, IEC 60068-2-27, 50G, half sine, 11ms
|
Relative Humidity |
10 ~ 95% @ 40°C non-condensing
|
Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
|
Vibration Protection |
Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis
|
Storage Temperature |
-40 ~ 85°C (-40~185°F)
|
