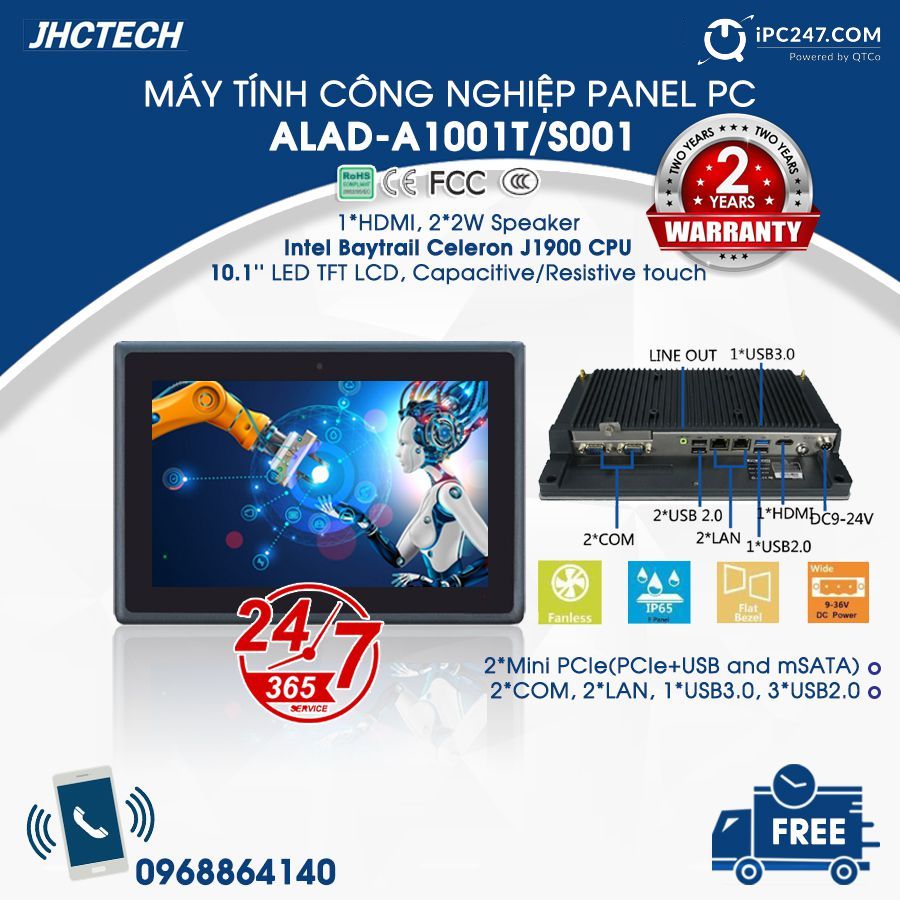

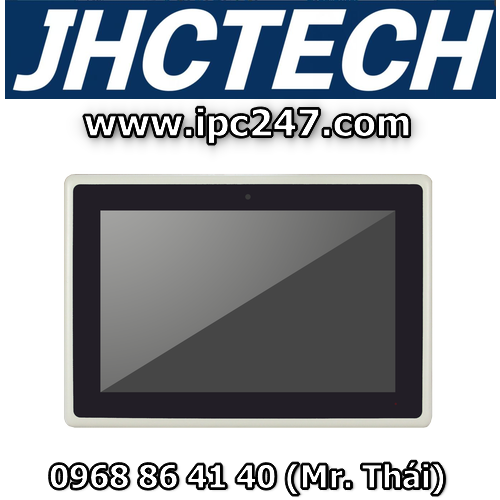

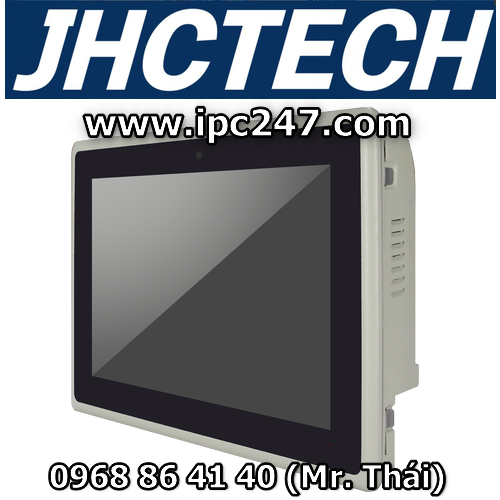

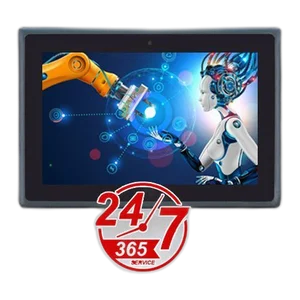

Máy tính công nghiệp Panel PC ALAD-A1001T/S001
Features

- Aluminum die-casting chassis, Fanless design
- 10.1” LED TFT LCD, Capacitive/Resistive touch
- Intel Baytrail Celeron J1900 CPU
- 1*DDR3L 1333MHz SODIMM, Max 8GB
- 2*Mini PCIe(PCIe+USB and mSATA)
- 2*COM, 2*LAN, 1*USB3.0, 3*USB2.0
- 1*2.5”HDD Bay, 1*mSATA
- 1*HDMI, 2*2W Speaker
- DC 9~24V Power input
Specifications
System | |
CPU | Intel Baytrail Celeron J1900 2.0- 2.42GHz, 4C4T, TDP 10W |
Chipset | Intel SOC |
System Memory | 1*DDR3L 1333MHz SODIMM, Max 8GB |
BIOS | Insyde SPI 64Mbit Flash |
Storage | 1*2.5″ SATA HDD Bay, support SATA3.0 6Gbps HDD/SSD 1*mSATA |
Display | 10.1” LED TFT LCD and HDMI, dual display, Intel HD Graphics,support Intel Quick Sync Video |
Touch | 5 wire resistive touch,USB control |
Expansion | 1*Mini PCIe full size with PCIe&USB signal; 1*mSATA full size |

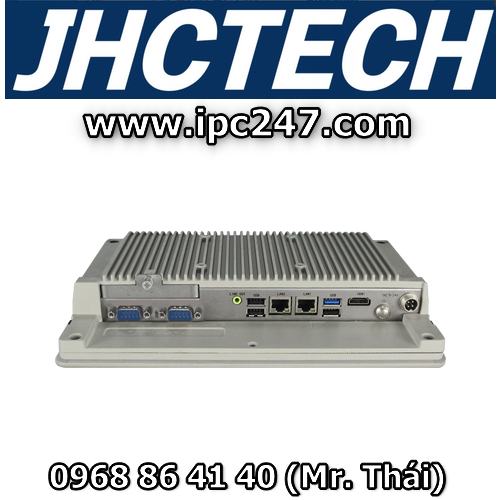

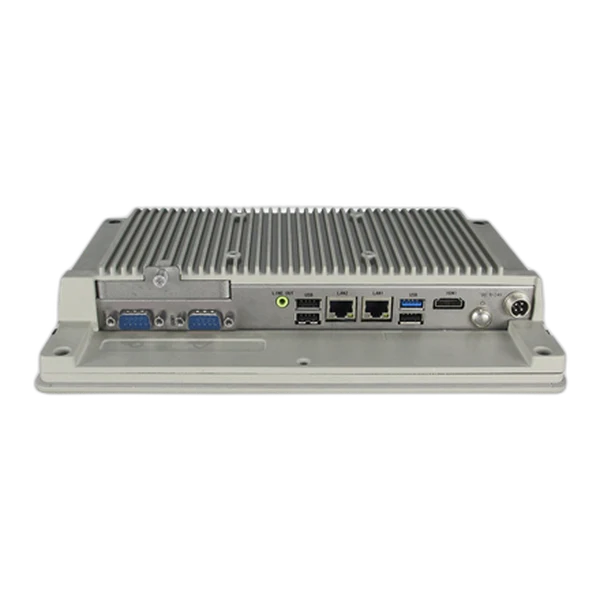

Real I/O | 2*COM:1*RS232 /422/485 DB9 connector, 1*USB3.0 Type A 3*USB2.0 Type A, 1*HDM, 2*RJ45 |
LAN | Intel I211AT Chip, 10/100/1000 Mbps |
Audio | Realtek ALC282 Audio codec integrated, 2*2W speaker inside |
Control SW | 1*Power button |
Power Supply | DC: 9-24V input, 4-pin M12 connector , consumption: TBD |
OS Supply | Windows 7, Windows 8.1, Linux |
Mechanical & Environmental | |

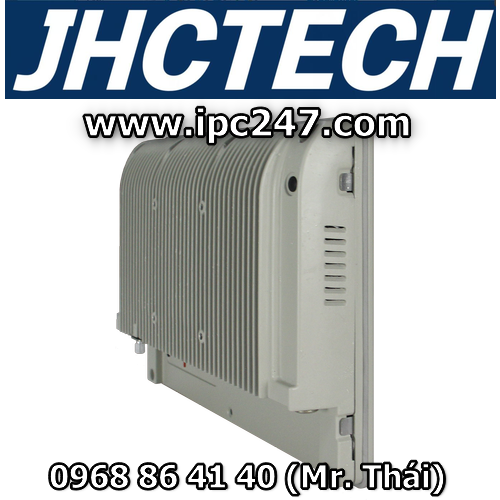

Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
Operating Temperature | 0~50℃ -HDD(-10~55℃ -SSD ), with airflow |
Storage Temperature | -20~60 ℃ |
Operating Humidity | 10~95%@40, non-condensing |
Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
Vibration | 1g 5~500Hz in operating with HDD |
Mounting | Panel mounting, VESA 100*100 |
Dimension | (W*H*D):275*193*51mm; mounting cut out(W*H): 271*189mm |
Net Weight | 1.9KG |
EMC | CE, FCC Class A |
LCD | |
Type | 10.1”TFT LED Backlight |
Resolution | 1280*800 |
Color | 16.7M colors |
Pixel Pitch(mm) | 0.1695*0.1695 |
Brightness(cd/m2) | 350 |
Viewing Angle | 85 Degree(left), 85 Degree(right), 85 Degree(up), 85 Degree(down) |
Operating Temperature | -20~70℃ |
Backlight Lifetime | 15000 Hours |
Touch | |
Type | 5 wire resistive touch |
Resolution | gapless |
Light Transmittance | 83% |
Interface | USB |
Consumption | +5V @ 200mA |
OS | Windows/Linux |
Click Lifetime | 15 million times |
Order information | |
NO. | Introductions |
ALAD-A1001T/ S001 | Industry panel computer, Intel® J1900 CPU, 10.1” TFT LCD, 5 wire resistive touch, 1*HDMI, 2 *COM, |
4*USB, 2*LAN, 1*Mini PCIe, 1*2.5” HDD Bay, 1*mSATA, 2*2W speaker, DC 9~24V | |
PA-60DC12 | AC/DC power adapter, DC12V/5A 60W |
