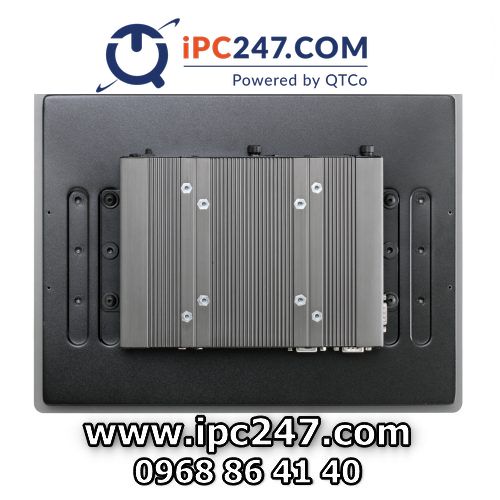

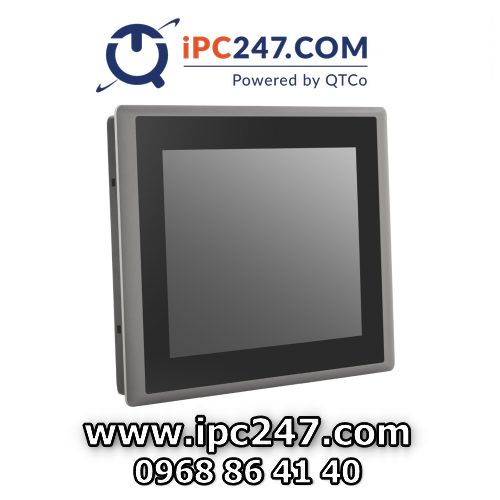

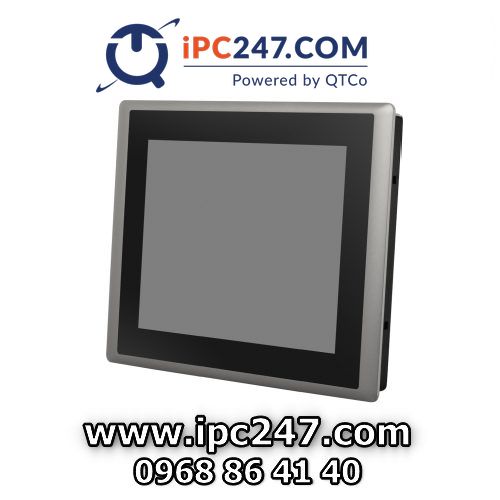

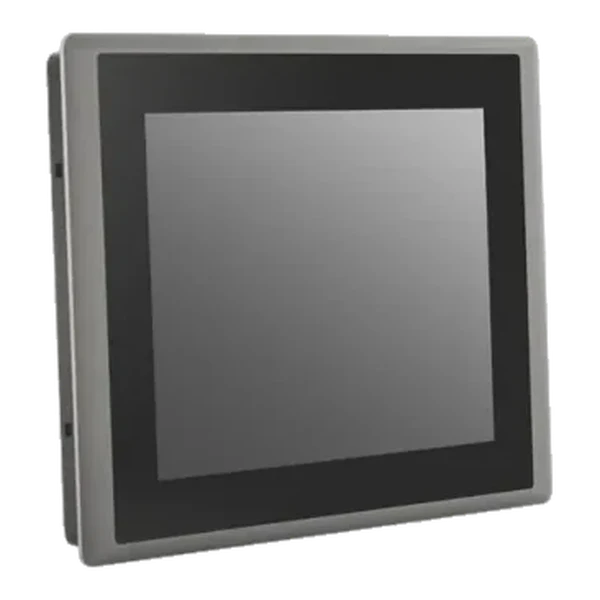

Máy tính công nghiệp màn hình cảm ứng CV-112/P1001E
Overview
12.1″ TFT SVGA 4:3 Touch Panel PC with Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket
Features
- 12.1″ TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Onboard Intel® Atom™ E3845 Processor Quad Core, 1.91GHz
- 1x DDR3L SO-DIMM max. up to 8GB
- 1x 2.5” SATA HDD Bay, 1x CFast Card and 1x SIM Card Socket
- 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO
- 1x Mini-PCIe Expansion Socket
- 2x Universal I/O Brackets
- IP65 Compliant Front Panel
- Support Panel / Wall / Arm / VESA Mounting
- Convertible Display System (CDS) Supported
- Built-in Two 2W Internal Speakers
Specifications
| Model Name | CV-112/P1001E | ||
| Model No. | CV-112R/P1001E | CV-112C/P1001E | |
| Display | LCD Size | 12.1″ (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50000 hrs (LED Backlignt) | ||
| Touch | Resistive 5-wire | V | – |
| Projected Capacitive | – | V | |
| Processor System | CPU | Intel Atom E3845 | |
| Core Number | 4 | ||
| Frequency | 1.91 GHz | ||
| Cache | 2 MB | ||
| Watts | 10W | ||
| Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) | |
| Max. Capacity | 8 GB | ||
| Socket | 1x 204-Pin SODIMM | ||
| Graphics | Chipset | Intel® HD Graphics | |
| Dual Display | VGA + DP VGA + CDS DP + CDS |
||
| Audio | Interface | Realtek ALC888-GR, High Definition Audio | |
| I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920×1080@60Hz | |
| DP | 1x DP connector, Up to 1920×1080@60Hz | ||
| LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I210AT GbE2: Intel I210AT Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE |
||
| POE+ | – | ||
| Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V |
||
| USB 3.0 | 1x USB 3.0, Type-A | ||
| USB 2.0 | 3x USB 2.0, Type-A | ||
| DIO | 4 in/4 out | ||
| Line-Out | 1x Phone Jack 3.5mm | ||
| Mic-In | 1x Phone Jack 3.5mm | ||
| Power on/off switch | V | ||
| Reset Button | V | ||
| AT/ATX Switch | V | ||
| Remote Power On/Off Connector | – | ||
| External FAN Connector | – | ||
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD | |
| mSATA | – | ||
| CFast | 1 | ||
| Expansion | PCI | – | |
| PCIe | – | ||
| CFM Interface (Control Function Module) |
– | ||
| Mini PCI Express | 1x Full-size Mini PCIe | ||
| Universal I/O Bracket | 2 | ||
| SIM Socket | 1(internal) | ||
| Antenna Holes | 2 | ||
| Other Function | CDS Function | V | |
| OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) |
||
| Power Ignition Sensing | – | ||
| Internal Speaker | AMP 2W + 2W | ||
| Super Cap | – | ||
| Instant Reboot | V | ||
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | ||
| Power Requirement | Power Type | AT/ATX | |
| Power Input Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension (WxHxD) | 344.97 x 265.3 x 88.35 mm | |
| Weight Information | 4.7 kg | ||
| Construction Front Panel | Die-cast Flat Surface | ||
| Mounting | Panel/ Wall/Arm/ VESA Mounting | ||
| Fanless Design | V | ||
| Cable-less Design | – | ||
| Jumper-less Design | – | ||
| Protection | Reverse Power Input Protection | V | |
| Over Voltage Protection | V | ||
| Over Current Protection | V | ||
| ESD Protection | V | ||
| Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 |
|
| Linux | Linux® Kernel 3.X | ||
| Environment | Operating Temperature | Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals) |
|
| StorageTemperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
