Máy tính công nghiệp không quạt UNO-3382G

Máy tính công nghiệp không quạt UNO-3382G

4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory

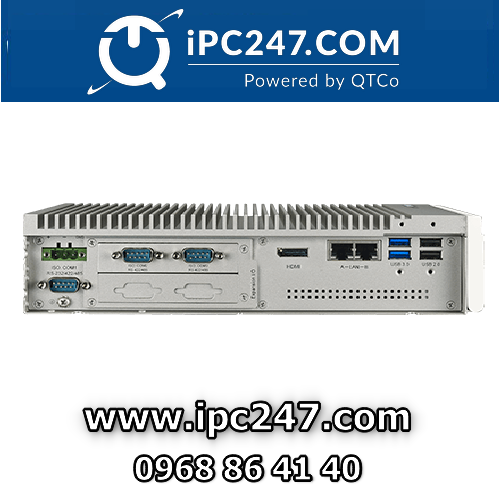

2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 1 x Cfast, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
Hoạt động liên tục 24/7
Bảo hành 24 tháng

Mã: UNO-3382G Danh mục: Máy tính nhúng Advantech

Mô tả

Mục lục

Máy tính công nghiệp không quạt UNO-3382G

Overview

Intel® Core™ i7/Celeron Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/DP

Features

4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory
2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 1 x Cfast, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
Hot-Swappable HDD/SSD support for RAID 0/1
Protection Technology of optional UPS is compatible with UNO-3300 series which enhances the quality of input power and secure the data safety
Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
LAN Redundancy (Teaming)

Specifications [UNO-3382G]

Part Number	UNO-3382G-474AE	UNO-3382G-4C3AE	UNO-3384G-474AE
Environment
Shock Protection	Operating, IEC 60068-2-27, 20G, half sine, 11ms	Operating, IEC 60068-2-27, 20G, half sine, 11ms	Operating, IEC 60068-2-27, 20G, half sine, 11ms
Vibration Protection	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)	Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
Operating Temperature	0 ~ 55°C (32 ~ 131°F)	0 ~ 55°C (32 ~ 131°F)	0 ~ 55°C (32 ~ 131°F)
Relative Humidity	10 ~ 95% RH @ 40°C, non-condensing	10 ~ 95% RH @ 40°C, non-condensing	10 ~ 95% RH @ 40°C, non-condensing
Storage Temperature	-40 ~ 85°C (-40~185°F)	-40 ~ 85°C (-40~185°F)	-40 ~ 85°C (-40~185°F)
I/O Interface
Power Connector	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block	1 x 3 Pins, Terminal Block
Displays	1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp	1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp	1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp
LAN Ports	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Serial Ports	1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps	1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps	1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps
USB Port	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)	4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)
System Hardware
Expansion	2 Full-size mPCIe	2 Full-size mPCIe	2 Full-size mPCIe, 1x PCIex4, 1x PCI
Storage	1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)	1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)	1 x CFast slot, 2x built-in 2.5″ SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)
Graphics Engine	Intel® HD Graphics	Intel® HD Graphics	Intel® HD Graphics
LED Indicators	LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2	LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2	LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2
Memory	Built-in 8GB DDR3L 1333 MHz	Built-in 4GB DDR3L 1333 MHz	Built-in 8GB DDR3L 1333 MHz
Processor	Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2	Intel® Celeron 2980U 1.6GHz, 2MB L2	Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2
System Chip	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset	Integrated Intel 8 Series Chipset
Watchdog Timer	Programmable 255 levels timer interval, from 1 to 255 sec	Programmable 255 levels timer interval, from 1 to 255 sec	Programmable 255 levels timer interval, from 1 to 255 sec
BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS	AMI UEFI 128Mbit Flash BIOS
General
OS Support	WIN7/8, WES7, WES10, Advantech Linux	WIN7/8, WES7, WES10, Advantech Linux	WIN7/8, WES7, WES10, Advantech Linux
Power Requirement	24VDC ± 20%	24VDC ± 20%	24VDC ± 20%
Power Consumption	45W (Typical), 65W (Max)	45W (Typical), 65W (Max)	45W (Typical), 75W (Max)
Weight	3.1 kg	3.1 kg	3.1 kg
Mounting	Book mount	Book mount	Book mount
Enclosure	Aluminum Housing	Aluminum Housing	Aluminum Housing
Form factor	Regular Size	Regular Size	Regular Size

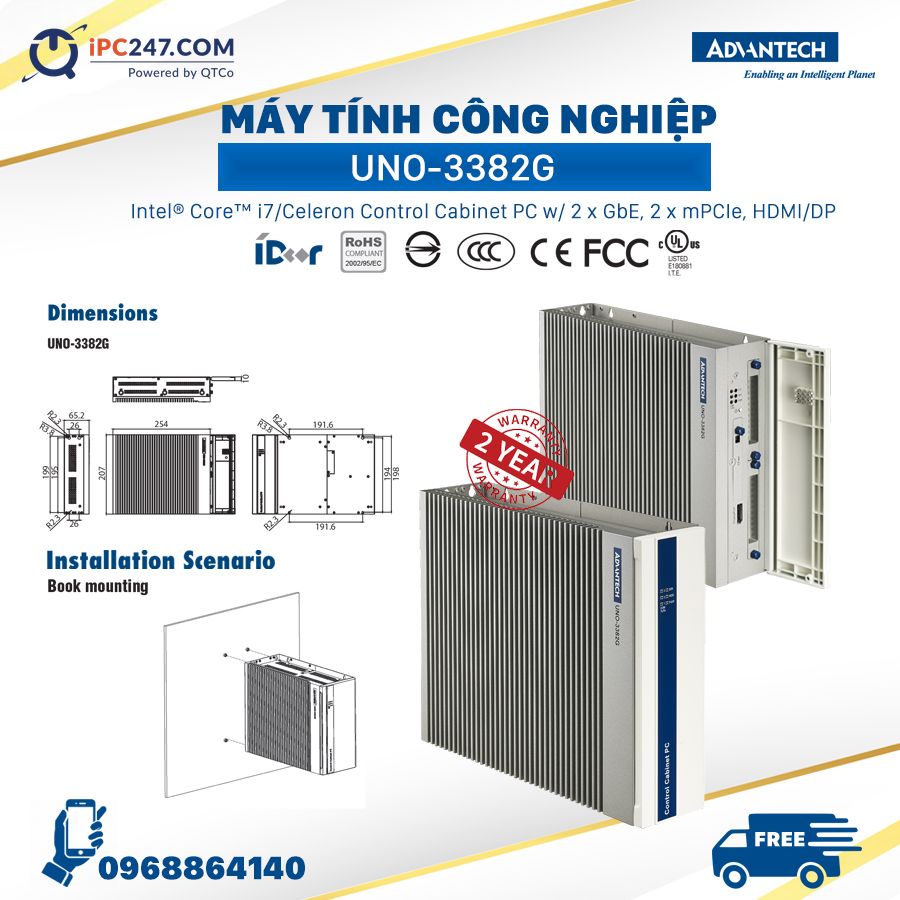

Dimension(W x D x H)	65.2 x 254 x 207 mm	65.2 x 254 x 207 mm	103.2 x 254 x 207 mm (4.06″ x 10″ x 8.15″)
Certifications	CE, FCC, UL	CE, FCC, UL	CE, FCC, UL
