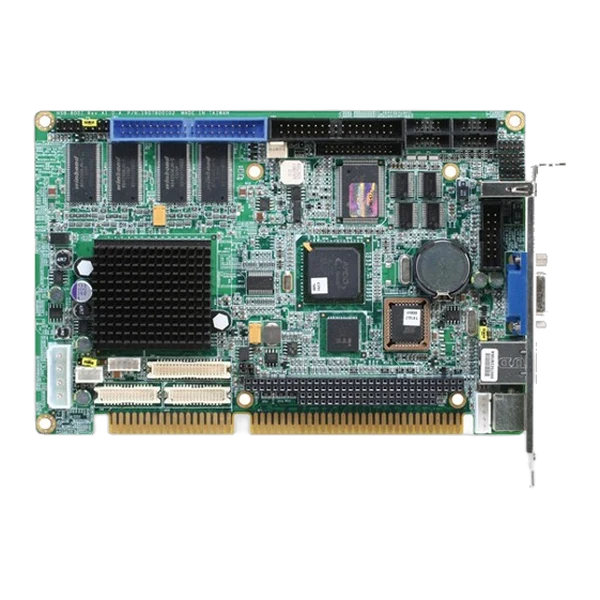

Half-Size Single Board Computers (HSB-800I-A11)
- HSB-800I,ISA Half-Size SBC with AMD Geode™ LX800 Processor
Overview
AAEON’s HSB-800I is designed to target the industrial control and automation market. HSB-800I is based on the AMD LX800 processor, which features low power consumption and faster heat spreading to ensure product performance. HSB-800I supports onboard DDR400 system memory up to 128MB with an AMDLX800 +CS5536 chipset. For the display function, the VGA controller is integrated to the AMD LX 800 processor that supports CRT and LVDS simultaneous display. Moreover, the HSB-800I supports LVDS/TTL LCD up to 24-bit with a 2D/3D graphics accelerator integrated to enhance graphic performance.
AAEON has a series half-size SBCs, from the high-end to a more economic level. Although the HSB-800I is considered an economic version, it offers the ideal balance of price and performance. Customers can utilize the HSB-800I to reduce the cost of system integration and planning. HSB-800I features 4 COM ports, 4 USB2.0 ports, one standard floppy disk drive port, 1 Keyboard/mouse connector . These expansion interfaces provide a better connection with your existing system while reducing replacement costs. If you are looking for an economic solution, the HSB-800I is your best choice.
Applications
- Industrial Automation
- Factory Automation
- ITS
- HMI
- Control Box
- Transportation
- Banking Machine
- Workstation

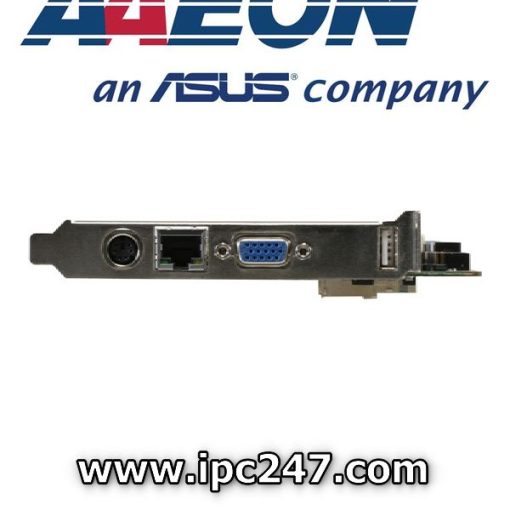

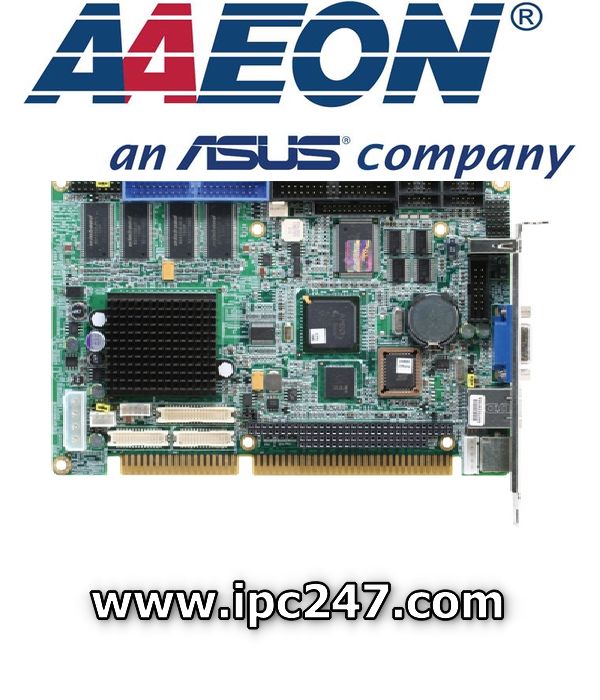

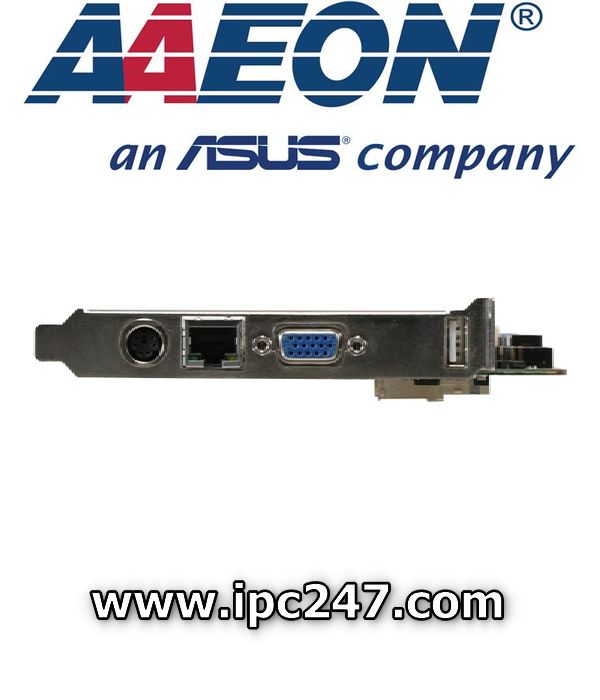

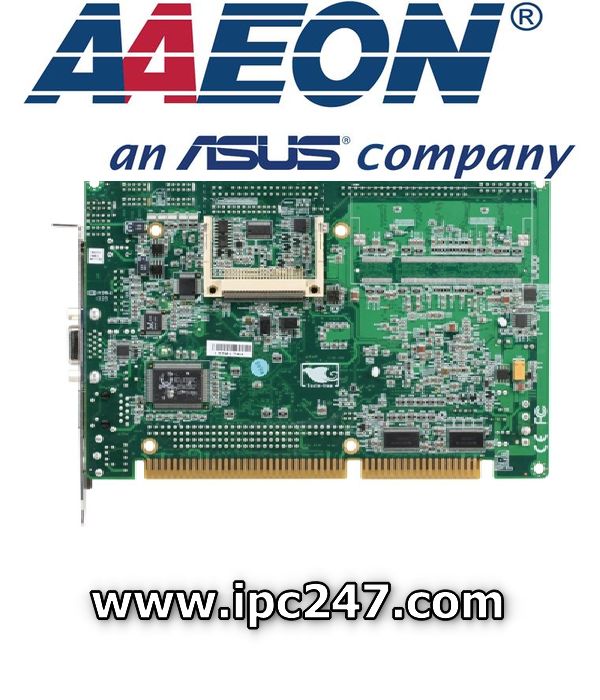

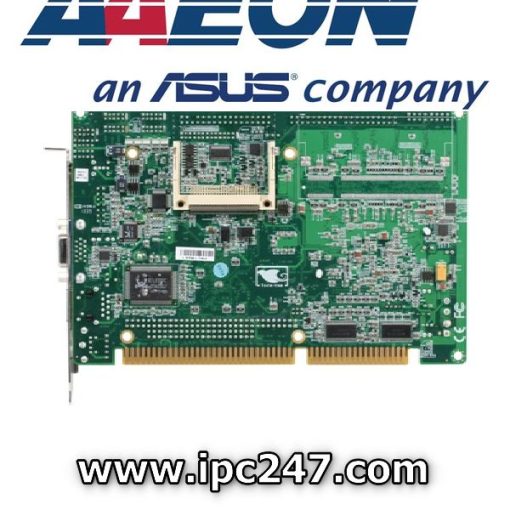

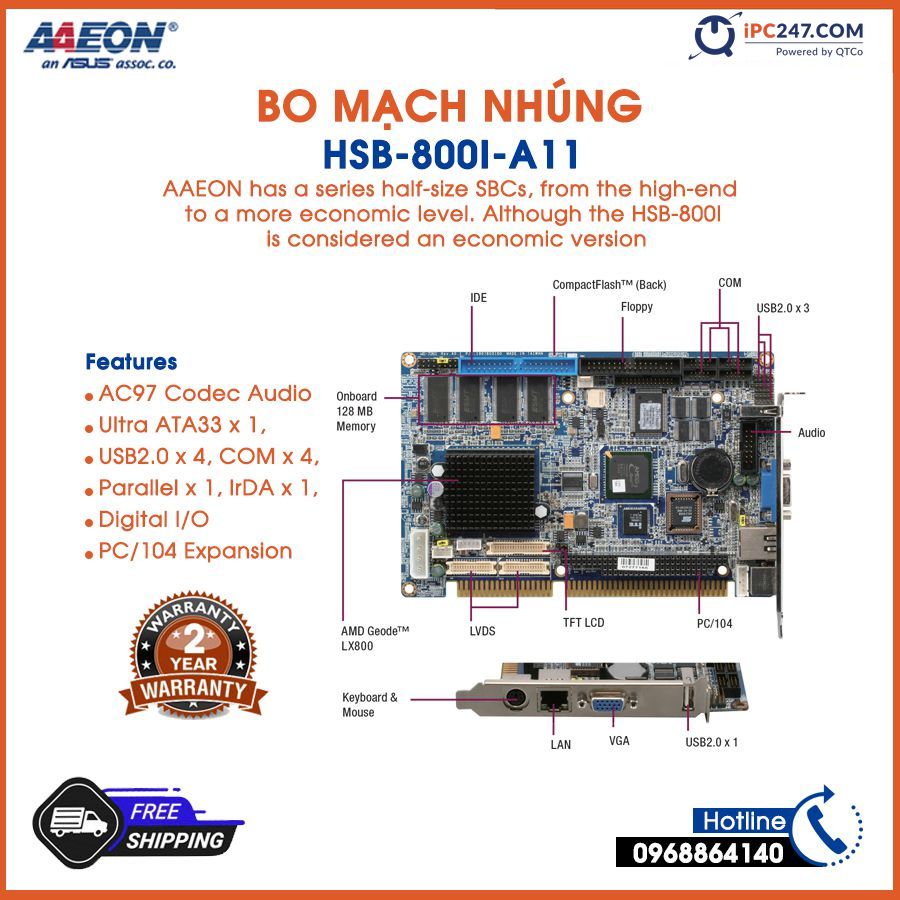

Features
- AMD Geode™ LX800 Processor
- AMD Geode™ LX800 + CS5536
- Onboard DDR 400 MHz, Up to 128 MB
- 10/100Base-TX Ethernet x 1 or Gigabit Ethernet x 1 (Optional)
- Integrated 2D Graphics Accelerator, VGA Support, CRT, TFT/ LVDS Support
- AC97 Codec Audio
- Ultra ATA33 x 1, CompactFlash™ Type 2 x 1
- USB2.0 x 4, COM x 4, Parallel x 1, IrDA x 1, Digital I/O
- PC/104 Expansion
- +5V, +12V Operation, AT Power
Specifications [HSB-800I]
| SYSTEM | |
| FORM FACTOR | Half-size CPU Card |
| BUS INTERFACE | ISA |
| CPU | Onboard AMD Geode™ LX800 |
| MEMORY TYPE | Onboard 128 MB (DDR 400) |
| CHIPSET | AMD Geode™ LX800 + CS 5536 |
| BIOS | Award |
| WAKE ON LAN | No |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | ATX 2.1 |
| POWER CONSUMPTION (TYPICAL) | AMD LX800, DDR400 128MB 0.19A@+12V, 1.51A@+5V, 9.83W |
| POWER SUPPLY TYPE | +5V, +12V operation |
| DIMENSION (L X W) | 7.3″ x 4.8″ (185mm x 122mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 85000 |
| CERTIFICATION | CE/FCC, Class A |
| DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ LX800 |
| VIDEO OUTPUT | 1600 x 1200@32bpp at 100 MHz for CRT 1600 x 1200@24bpp for LCD |
| BACKLIGHT INVERTER SUPPLY | 5V/12V |
| I/O | |
| ETHERNET | 10/100 or 10/100/1000Base-TX (optional) |
| AUDIO | Yes |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 3 RS-232/422/485 x 1 |
| PARALLEL PORT | 1 |
| HDD INTERFACE | IDE x 1 |
| FDD INTERFACE | 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | ISA, PC/104 |
| DIO | 8-bit Programmable (4-in/4-out) |
| TPM | — |
Ordering Information [HSB-800I]
| PART NUMBER | TF-HSB-800I-A10-VG |
|---|---|
| CPU | AMD Geode™ LX800 |
| RAM | Onboard 128 MB DDR 400 |
| FAN/FANLESS | Fanless |
| DISPLAY | VGA + LVDS/TTL |
| STORAGE | IDE x 1, Floppy x 1, CF x 1 |
| LVDS | 24b, 1CH |
| LAN | GBE x 1 |
| USB | USB2.0 x 4 |
| RS-232 | 3 |
| RS-232/422/485 | 1 |
| EXPANSION SLOT | ISA, PC/104 |
| POWER | +5V, +12V, AT |
| TEMP. | 0°C ~ 60°C |
Downloads [HSB-800I]
Packing List
- 1701340704 Flat Cable, 34P, 70cm, GRAY for FDD
- 1701400453 Cable, 40P 2.54mm IDC with Nose with Fold, 40P 2.54mm IDC with Nose with Fold, 45cm, Blue ATA100
- 1700060192 Cable, 6P-6P-6P, 19cm, IVORY PS2/KB & Mouse
- 1709140302 Cable, Phone Jack x 3, to 14P, 2.54mm Housing, DB9P(M) 10P 2.0mm IDC, 4P 2.54mm Housing, 30 cm with Bracket
- 1701200301 Flat Cable, 9P DB9P Male, 10P 2.0mm Pitch x 2, 30cm, IDC No Fold, with Bracket
- 170910020A USB Cable, 22cm 2.0mm,W/Bracket
- 1703030501 Wire,3P 2.5mm Housing, 3P 2,5mm Housing, 50cm
- 1701260307 Flat Cable, 9P/DB9P Male & 25P DB25P Female, 10P 2mm & 26P 2mm/IDC No Fold, 30cm with Bracket
- Product C
- HSB-800I
Optional Accessories
| TF-PER-U00A | AC97 Audio Daughter Board |
| P/N | Description | Master Interface | Slots (PCI/ ISA/ PICMG) | Power ATX Extend Function |
| TF-BP-204SI | Wallmount, ISA 4-slot Backplane, 4 ISA, Single Segment, AT | ISA | (0/4/0) | AT |
| TF-BP-206SI | Wallmount, ISA 6-slot Backplane, 6 ISA, Single Segment, AT/ATX | ISA | (0/6/0) | AT/ATX |
| TF-BP-214SI | Wallmount, ISA 14-slot Backplane, 14 ISA, Single Segment, AT | ISA | (0/14/0) | AT |
