Overview
Features
- Onboard Intel® 6th Generation Core™ U Series Processor (15W)
- 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
- Advanced Graphics Engine Support Triple Independent Display
- 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
- 2x Full Size Mini-PCIe Socket
- Support CFM (Control Function Module) Technology
- Support 2x PoE+, Individual Port Offers Max. 25.5W (with optional CFM module)
- Support Ignition Sensing Function (IGN) (with optional CFM module)
- Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
- Support Instant Reboot Technology
- Support CDS Technology for Convertible Panel PC
- Wide Operating Temperature (-25°C to 70°C)
- SuperCap integrated for Battery Maintenance-Free

Specifications [P2002]
Model Name | P2002 |
Processor System | Onboard 6th Intel® Core™ U processors (Skylake) |
– Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) | |
– Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) | |
– TDP: 15 W | |
– BIOS: AMI 64Mbit SPI BIOS | |
Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB |
(2133MHz, un-buffered and non-ECC type) | |
Graphics | Intel® HD Graphics 520 |
Triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface | |
Audio | Realtek® ALC888-GR |
High Definition Audio | |
I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 |
1x DVI-D (Up to 1920 x 1080 @ 60Hz) | |
1x CDS Interface, Compact PCI Connector | |
2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 | |
– GbE1: Intel I219LM | |
– GbE2: Intel I210AT | |
2x PoE+ (with Optional CFM PoE Module) | |
– Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | |
6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
4x USB 3.0, Type-A | |
1x USB 2.0, Type-A | |
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | |
1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |
1x Power On/Off Switch | |
1x Reset Button | |
1x AT/ATX Switch | |
1x Remote Power On/Off Connector, 2-Pin Terminal Block | |
1x External FAN Connector, 4-Pin Terminal Block | |
Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) |
2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |
1x CFast Socket (Gen3) | |
Expansion | 1x CFM PoE interface |
1x CFM IGN interface | |
2x Full-size Mini-PCIe Socket | |
1x Universal I/O Bracket | |
1x SIM Socket | |
4x Antenna Hole | |
Other Function | Support CDS Technology |
Support CFM Technology | |
Support Instant Reboot Technology (0.2 sec) | |
Support Power Ignition Sensing (IGN) | |
Support OSD Function | |
(LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) | |
Internal Speaker AMP 2W + 2W | |
SuperCap Integrated | |
Watchdog Timer: | |
Software Programmable Supports 1~255 sec. System Reset | |
Power Requirement | Support AT/ATX Power Mode |
Power Input Voltage 9~48VDC | |
One 3-pin Terminal Block Connector | |
Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W | |
Physical | Dimension (WxDxH): 254.5 x 220 x 54 mm |
Weight: 3.18 kg | |
Extruded Aluminum with Heavy Duty Metal | |
Support Wall / VESA / CDS Mounting | |
Fanless Design | |
Jumper-less Design | |
Protection | Reverse Power Input Protection |
Over Voltage Protection: 58V | |
Over Current Protection: 15A | |
ESD Protection: +/-15kV (air), +/-8kV (contact) | |
Surge Protection: 3kW | |
Operating Stystem | Windows® 10 |
Windows® 8.1 | |
Windows® 7 | |
Linux® Kernel 4.4 | |
Environment | Operating Temperature: -25°C to 70°C |
(With extended temperature peripherals; Ambient with air flow | |
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) | |
Storage Temperature: -40°C to 85°C | |
Relative Humidity: 95% RH @ 40°C (Non-condensing) | |
Shock: Operating, 50 Grms, Half-sine 11 ms Duration | |
(with SSD, according to IEC60068-2-27) | |
Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes | |
(with SSD, according to IEC60068-2-64) | |
EMC: CE, FCC Class A |
Chính sách bán hàng
- Bảo hành 24 tháng
- Miễn phí vận chuyển toàn quốc
- Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
- Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
- Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.

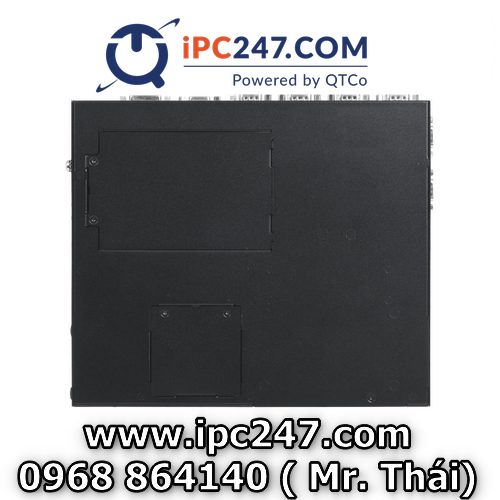

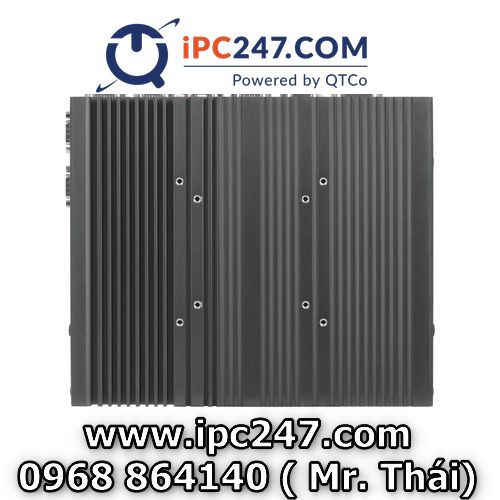

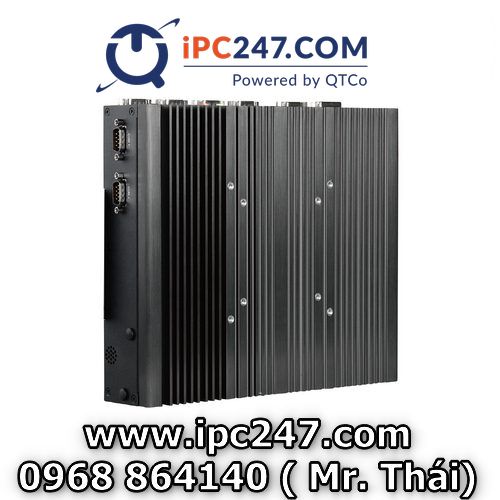

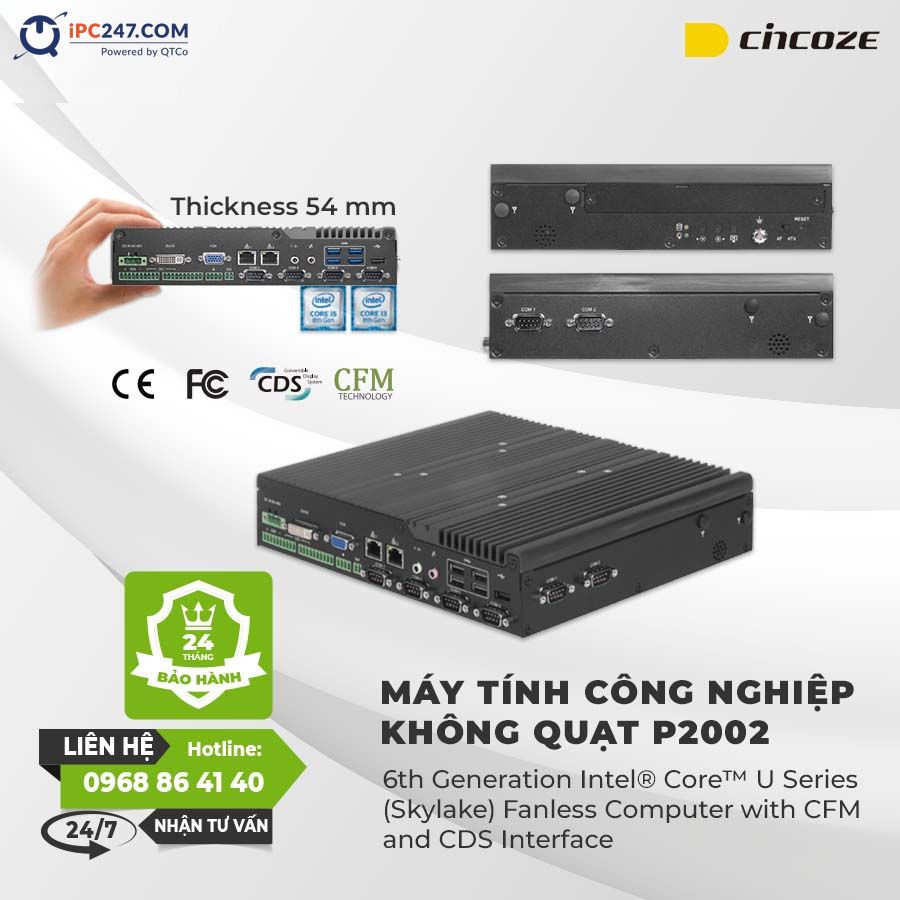

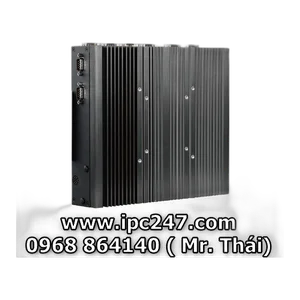

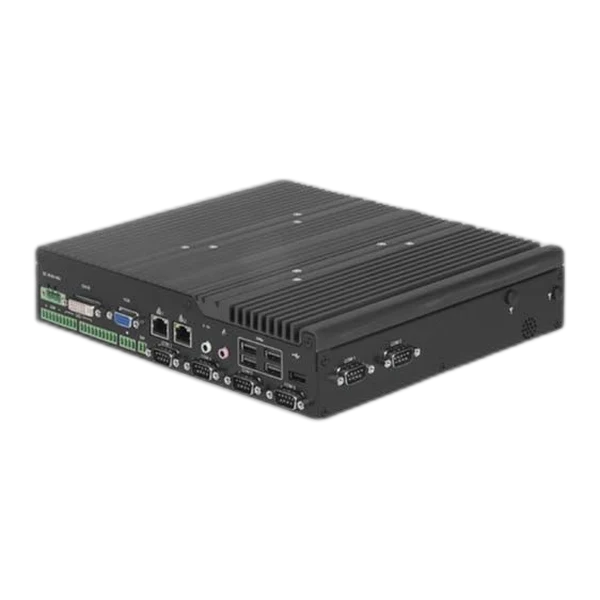

Máy tính công nghiệp không quạt P2002
