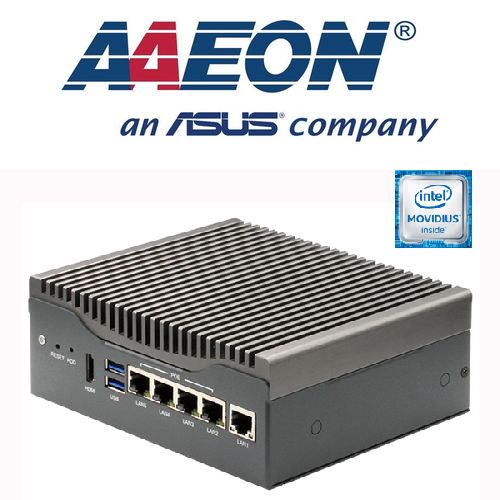

In-Vehicle NVR AAEON VPC-3350AI
Overview
- Fanless Network Video Recorder with Intel® Atom™ Processor & Intel® Movidius™ Myriad™ VPU
- The VPC-3350AI is based on a flexible platform powered by Intel® Atom™ x5 E3940 (formerly Apollo Lake) paired with two Intel® Movidius® Myriad™ X VPU modules. Together, these modules provide the VPC-3350AI with processing speeds up to 210 FPS and 8 TOPs as a dedicated neural network accelerator (evaluated by GooLeNet). This configuration of two VPUs with processor allows the VPC-3350AI to support asynchronous processing of AI models, allowing for higher framerates and faster, smoother image processing for AI inferences.
- The VPC-3350AI features an innovative thermal solution providing wide temperature operations from -20°C to 60°C, perfect for operating in almost any environment. The VPC-3350AI is designed with an assortment of I/O ports including four POE ports, two COM, and USB 3.2 Gen 1 ports, allowing for flexibility to integrate with any project. AAEON’s industry leading OEM/ODM and manufacturer services provide options for clients to configure the VPC-3350AI to their needs, including providing up to four Intel® Movidius® Myriad™ X VPUs, expanded I/O and functionality for in-vehicle operations.
- With Intel® Movidius® Myriad™ X, the VPC-3350AI is a perfect fit for AI and edge computing applications, including license plate and facial recognition. As an in-vehicle AI embedded system, it helps to power driver safety applications such as advanced driver-assist systems (ADAS) or driver monitoring and behavior analysis for heavy vehicle operators.
- With flexible design and AI processing powered by Intel® Movidius® Myrad™ X, the VPC-3350AI is the choice for vital embedded applications which rely on processing of visual data. With its flexible design, the VPC-3350AI offers several key advantages as a solution for many of today’s AI and edge computing needs.
Features
- Intel® Atom® x5-E3940 Processor
- 2 x Intel® Myriad™ X VPU inside
- Supports DDR3L SODIMM up to 8 GB
- Supports Two Display by HDMI x1, DP x 1
- Intel® Giga Ethernet x 5 Ports, including 4 x PoE Ports, 1 x LAN
- 4-CH DI & 4-CH DO (Isolation, optional )
- -20 °C to 60 °C fanless operation
Specifications [VPC-3350AI]
| SYSTEM | |
| Form Factor | Mobile NVR |
| processor | Intel® Pentium®/ Celeron®/ Atom™ Processor (Default: E3940; Project base: N4200/N3350, or E3950 w/ customized chassis) |
| Chipset | 2 x Intel® Myriad™ X, up to 4 Myriad™ X (Project base) |
| Main Memory | Up to 8GB, DDR3L 204-pin SODIMM |
| Display | HDMI x 1, DP x 1 |
| Ethernet | Intel® i211 (colay i210) |
| PoE Ethernet Port | 4 ports, sharing 60W of power budget for every four PoE ports |
| RAID Support | — |
| Expansion Slot | SATA x 1 |
| GPS | — |

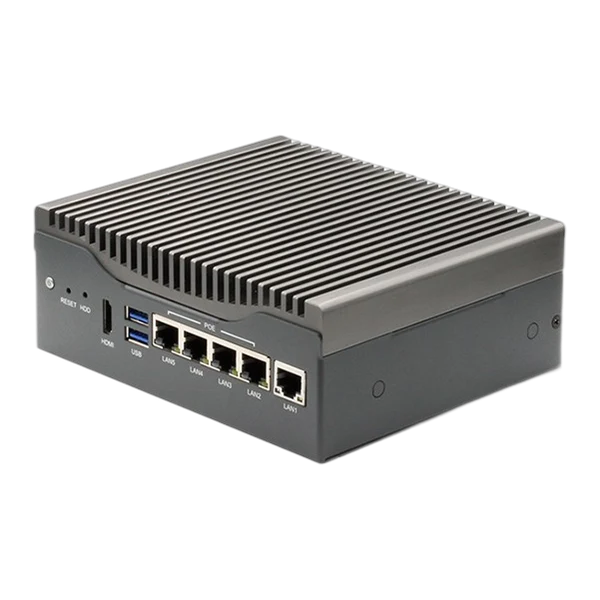

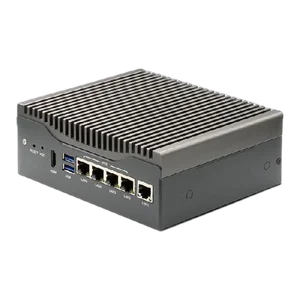

| Front I/O Panel | Power Button x 1 Reset Button x 1 Power/HDD, LED x 2 USB 3.2 Gen 1 x 2 GbE port (RJ-45) x 1 PoE LAN x 4 (IEEE 802.3 at/af) HDMI x 1 |

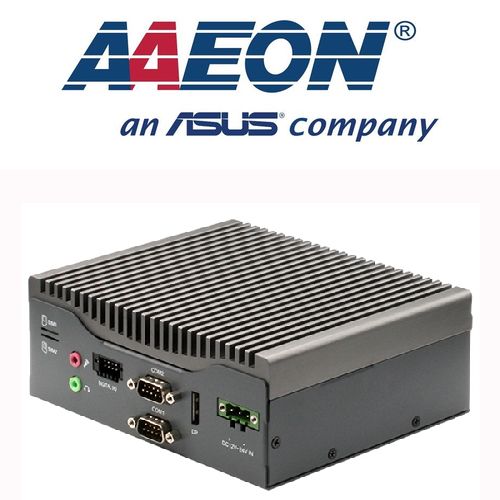

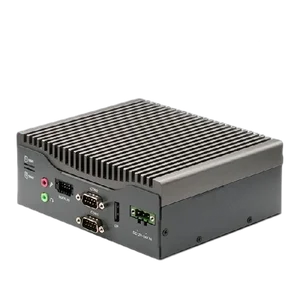

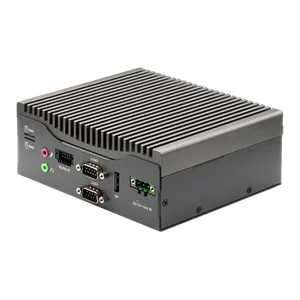

| Rear I/O Panel | DC-In power x 1 8-bit DIO x 1, 4-ch digital input , 4-ch digital output RS-232/422/485 x 2 DP x 1 Audio Line-out x 1, Mic-In x 1 Micro SIM slot x 2 |
| STORAGE | |
| HDD | 2.5” HDD/SSD Bay x 1 |
| CF/CFast/mSATA | — |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~ 140°F (-20°C ~ 60°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity | 10%~80% @40°C, non-condensing |
| Vibration/Shock | MIL-STD-810G |
| Certification | CE & FCC Class A |
| POWER REQUIREMENT | |
| Power Supply | DC 12-24V |
| MECHANICAL | |
| Removable HDD Tray | — |
| Internal System HDD Bay | — |
| Dimension | 6.3” x 5.28” x 2.44” (160mm x 134mm x 62mm) |
| Gross Weight | 5.07 lb (2.3 kg) |
Ordering Information [VPC-3350AI]
| Part Number | VPC-3350S-AI-A10-00 |
|---|---|
| PROCESSOR | Intel® Atom®x5 E3940 |
| RAM | DDR3L 204-pin SODIMM |
| COOLER | Fanless |
| STORAGE | Supporting 2.5” SSD x 1 (Optional SKU: Supporting additional mSATA x1 & eMMC) |
| AI ACCELERATOR | Intel® Myriad™ X x 2 |
| DISPLAY | DP x 1, HDMI x 1 |
| LAN | GbE x 1 |
| POE | 4 Ports |
| USB | USB 3.2 Gen 1 x 2 |
| RS-232 | — |
| RS-232/422/485 | 2 |
| EXPANSION SLOT | — |
| FORM FACTOR | Desktop |
| POWER | DC 12-24V |
Packing List
- Wallmount bracket
- SATA cable x 1
- Power cable x 1 (for SATA)
- VPC-3350AI
Optional Accessories
| 125590120B | Adapter. AC/DC input AC 100-240 output DC 19V 6.32A 120W |
| 170203180B | POWER CORD.3P(M).3P(F).1.8m.250V 10A 180D.CHINA.FAN-JET.YP-03/YC-12 |
| 1702031803 | Power Cord.3P-250V 10A 180D.1.8M.VDE.FAN-JET.YP-22/YC-12 (Euro) |
| 1702031802 | Power Cord.3P-125V 10A 180D.1.8M.USA.FANJET.YP12/YC-12 (USA) |
| 170203180E | Power Cord. 3P. 125V/7A. 1. 8M. PSE YP12/YC12 Certificate (JPN) |
| 1702031803 | POWER CORD.3P-250V 10A 180D.1.8M.VDE.FAN-JET.YP-22/YC-12 (Euro) |
| 1702031802 | POWER CORD.3P-125V 10A 180D.1.8M.USA.FANJET.YP12/YC-12 (USA) |
| 170203180E | Power cord. 3P. 125V/7A. 1. 8M. PSE YP12/YC12 Certificat (JPN) |
