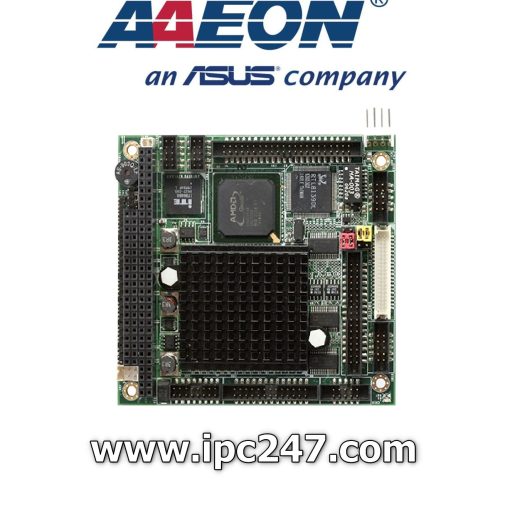

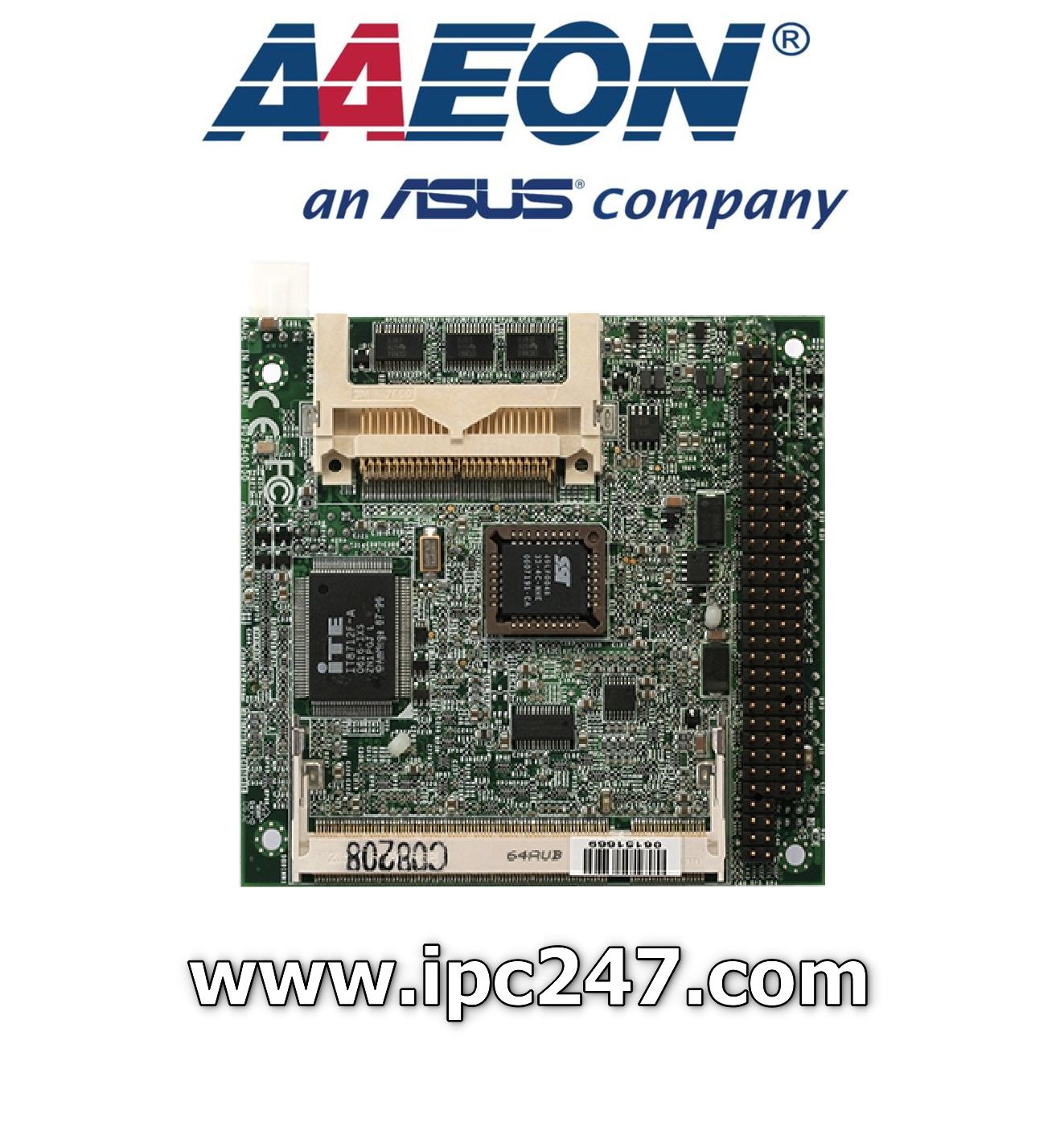

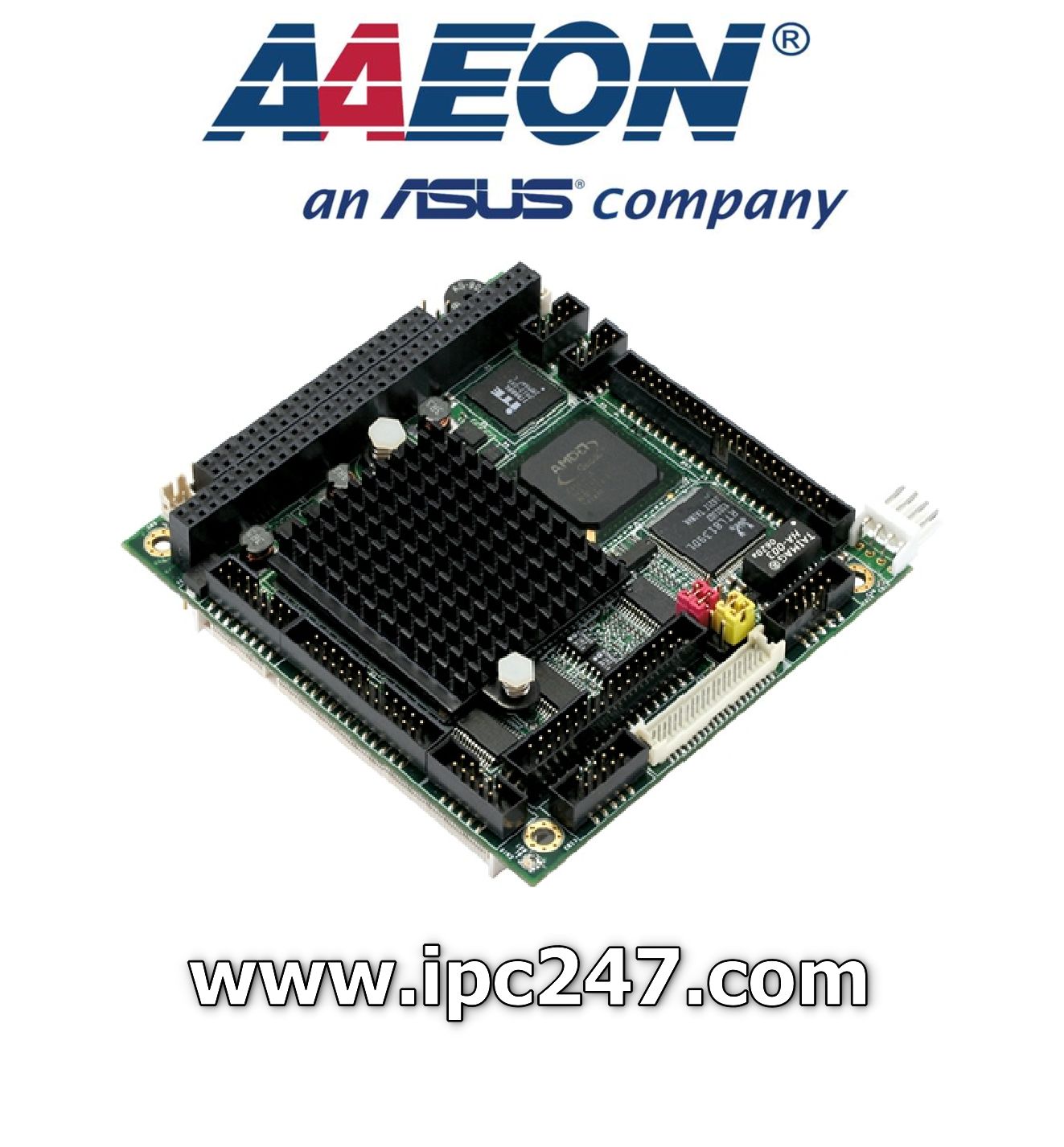

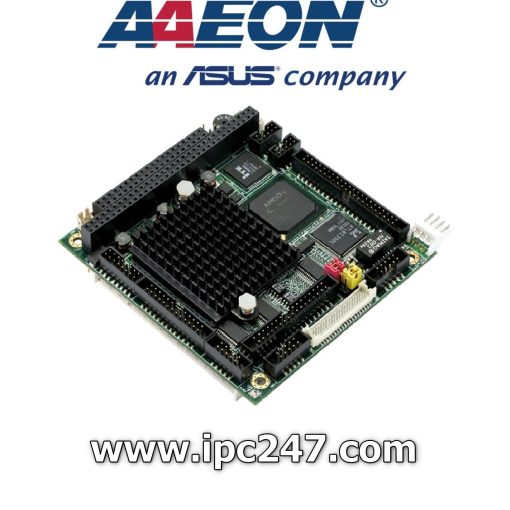

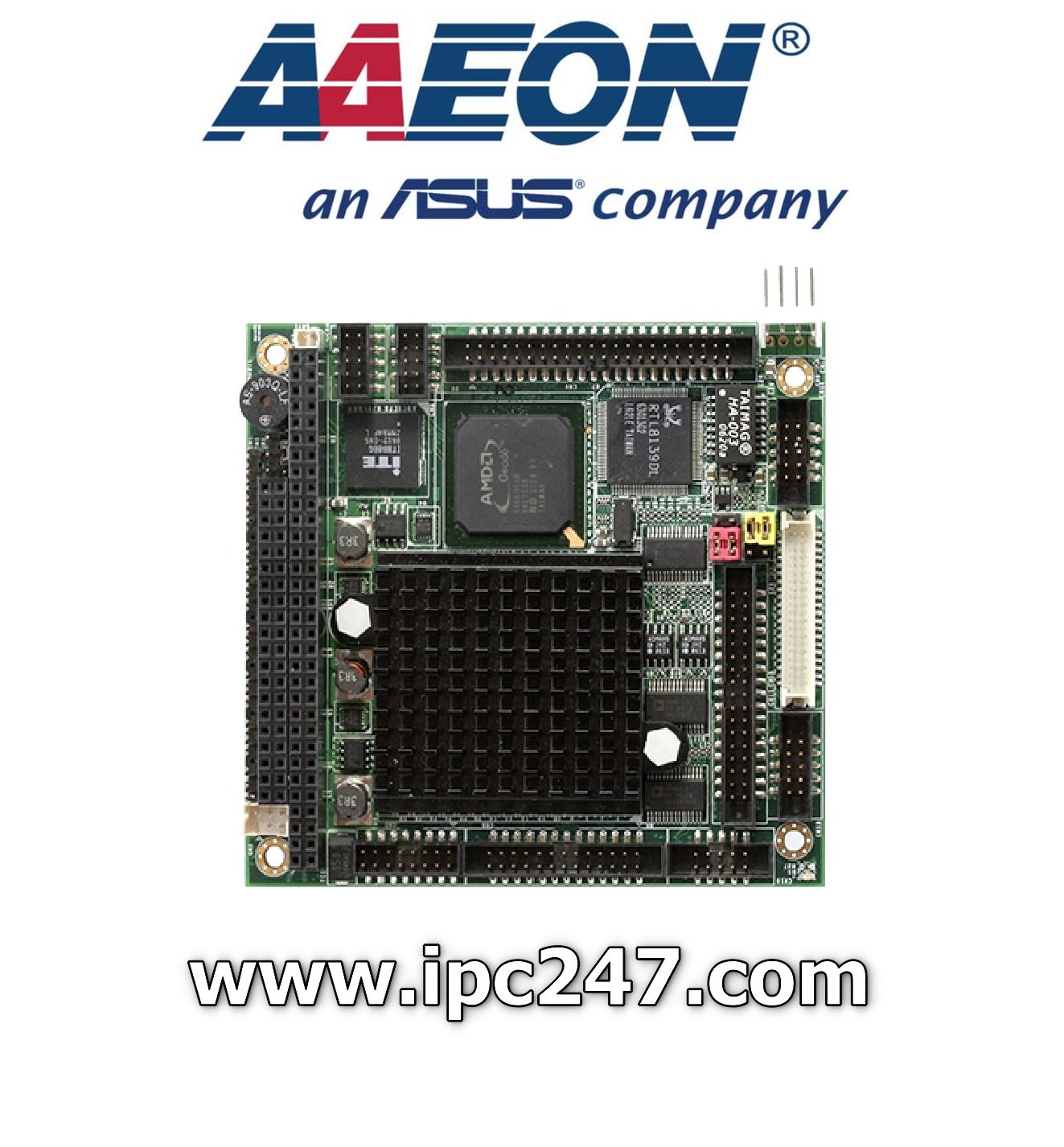

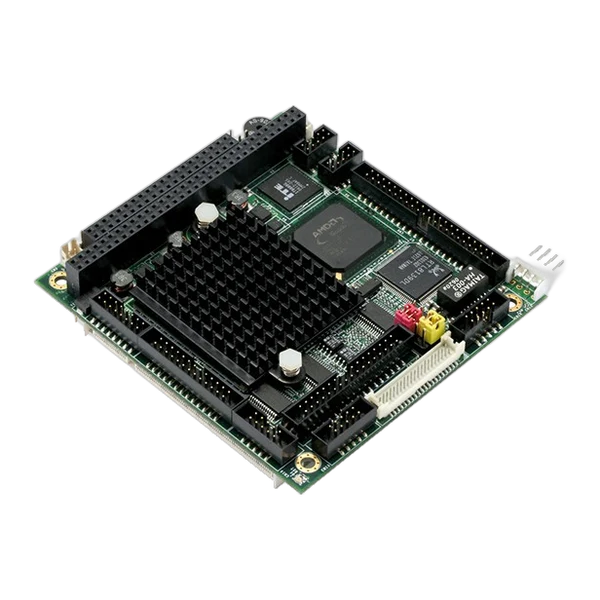

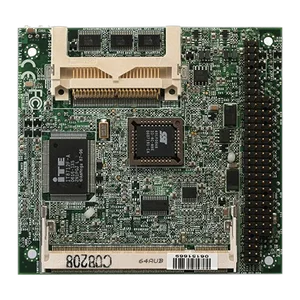

Mô-đun PC/104 PFM-540I Rev. A
PC/104 Module with AMD Geode™ LX Processor
Overview
PFM-540I Rev.A adopts an AMD Geode™ LX800 processor that is more cost effective compared to other PC/104 CPU modules on the market. This model supports DDR333 SODIMM Memory max. 1GB for DDR333 and 512MB for DDR400. Although PFM-540I Rev.A is a small board, it offers the full functions customers demand. The chipset of PFM-540I Rev.A deploys AMD LX800 and CS5536 that makes this board achieve high performance. It features one 10/100Base-TX Ethernet port, four USB 2.0 ports, two serial ports, one parallel port, IR interface, watchdog timer and includes PC/104 expansion.
Applications
- Military
- Operator Terminal
- Transportation
- Panel
- Aviation
- Low Power Consumption

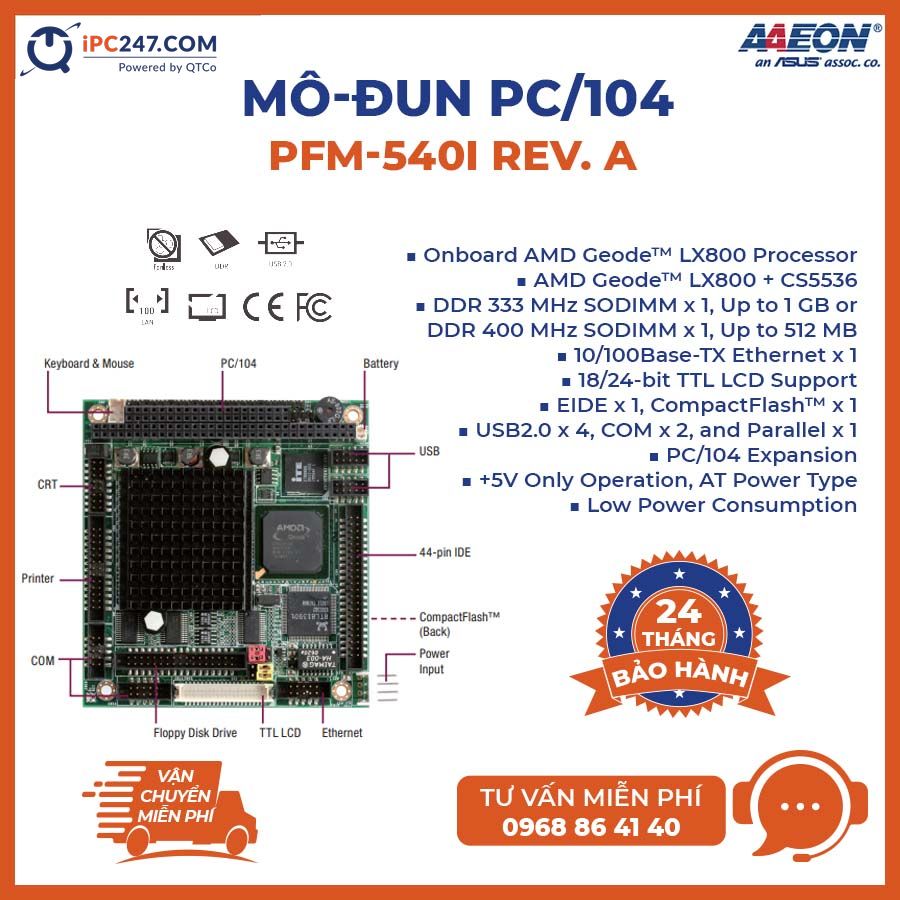

Features
- Onboard AMD Geode™ LX800 Processor
- AMD Geode™ LX800 + CS5536
- DDR 333 MHz SODIMM x 1, Up to 1 GB or DDR 400 MHz SODIMM x 1, Up to 512 MB
- 10/100Base-TX Ethernet x 1
- 18/24-bit TTL LCD Support
- EIDE x 1, CompactFlash™ x 1
- USB2.0 x 4, COM x 2, and Parallel x 1
- PC/104 Expansion
- +5V Only Operation, AT Power Type
- Low Power Consumption
Specifications [PFM-540I Rev. A]
| SYSTEM | |
| FORM FACTOR | PC/104 |
| CPU | Onboard AMD Geode™ LX 800 |
| CPU FREQUENCY | 500 MHz |
| CHIPSET | AMD Geode™ LX 800 + CS5536 |
| MEMORY TYPE | DDR333/400, SODIMM x 1, (512 MB for DDR400) |
| MAX. MEMORY CAPACITY | 1 GB |
| BIOS | Award 512 KB |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| POWER REQUIREMENT | +5V |
| POWER SUPPLY TYPE | AT |
| POWER CONSUMPTION (TYPICAL) | AMD Geode™ LX 800 500 MHz, DDR400 512 MB, 1.53A@+5V |
| DIMENSION (L X W) | 3.55″ x 3.77″ (90mm x 96mm) |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 100,000 |
| CERTIFICATION | CE/FCC |
| DISPLAY | |
| VGA/LCD CONTROLLER | AMD Geode™ LX 800 |
| VIDEO OUTPUT | CRT, TTL LCD |
| BACKLIGHT INVERTER SUPPLY | — |
| I/O | |
| ETHERNET | 10/100Base-TX x 1, Realtek RTL 8139DL |
| AUDIO | — |
| USB PORT | USB2.0 x 4 |
| SERIAL PORT | RS-232 x 1, RS-232/422/485 x 1 |
| PARALLEL PORT | SPP/EPP/ECP x 1 |
| HDD INTERFACE | UDMA33 x 1 |
| FDD INTERFACE | FDD x 1 |
| SSD | CompactFlash™ |
| EXPANSION SLOT | PC/104 |
| PWM LCD SUPPORT | — |
| DIO | — |
| TPM | — |
| TOUCH | — |
Ordering Information [PFM-540I Rev. A]
| PART NUMBER | TF-PFM-540I-A10 |
|---|---|
| CPU | AMD Geode™ LX800 |
| RAM | SODIMM |
| FAN/ FANLESS | Fanless |
| STORAGE | EIDE x 1, CompactFlash™ x 1 FDD x 1 |
| DISPLAY | CRT + TTL |
| LVDS | 18/24b, 1CH |
| LAN | FE x 1 |
| USB | 4 |
| RS-232 | 1 |
| RS-232/422/485 | 1 |
| PARALLEL | 1 |
| EXPANSION SLOT | PC/104 |
| POWER | +5V/AT |
| TEMP. | 0°C ~ 60°C |
Downloads [PFM-540I Rev. A]
1. Datasheet: PFM-540I Rev. A, datasheet 1.0
2. Manual: PFM-540I Rev. A, manual 3.0
Packing List
- 9681540I00 Cable Kit for PFM-540I Rev.A
- 1701100207 RS-232 Cable x 2
- 1701440350 44-pin IDE Cable x 1
- 1700060152 Keyboard & Mouse Cable x 1
- 1700100200 LAN Cable x 1
- 1709100201 USB Cable x 2
- 1701260201 Printer Port Cable x 1
- 1700160201 VGA Cable, Length 20cm
- PFM-540I Rev. A
Optional Accessories
| PCM-3538T-A10 | TTL to LVDS Transmitter Module Rev. A1.0 |
